Model: FieldChart
FieldChart Multi-Channel Data Acquisition Software
FieldChart provides an intuitive Windows interface for monitoring and recording data from NOVUS controllers, indicators, transmitters, and loggers. Available in FieldChart-Lite (up to 8 channels) and FieldChart-64C (up to 64 channels), it offers automated continuous disk logging, alarm acknowledgments, and graphic trend visualization.
Key Features
- Real-time visualization in both interactive multi-trace charts and variable spreadsheet lists
- Available in FieldChart-Lite (8 channels) and FieldChart-64C (64 channels) editions
- Automated background saving of real-time measurements directly to PC disk files
- Configurable visual alarms with operator acknowledgment tracking
- Connects via RS485 Modbus RTU (using USB-i485) or Modbus TCP networks
Technical Specifications
Capabilities
Inquire About FieldChart
Need pricing, validation documentation (IQ/OQ), or custom application sizing? Contact our bioprocess engineering team.
Applications
- Lyophilizer freeze-drying test runs and pilot batch observation
- Stability chamber validation logging
- Production test benches and quality control laboratories
Calibration & Validation
ISO/IEC 17025 factory calibration certificates and IQ/OQ documentation packages are available on request.
Include in enquiryDocumentation
Technical datasheets and user manuals are available from our engineering team upon request.
Request DocumentationRelated Products
View all Software & Validation

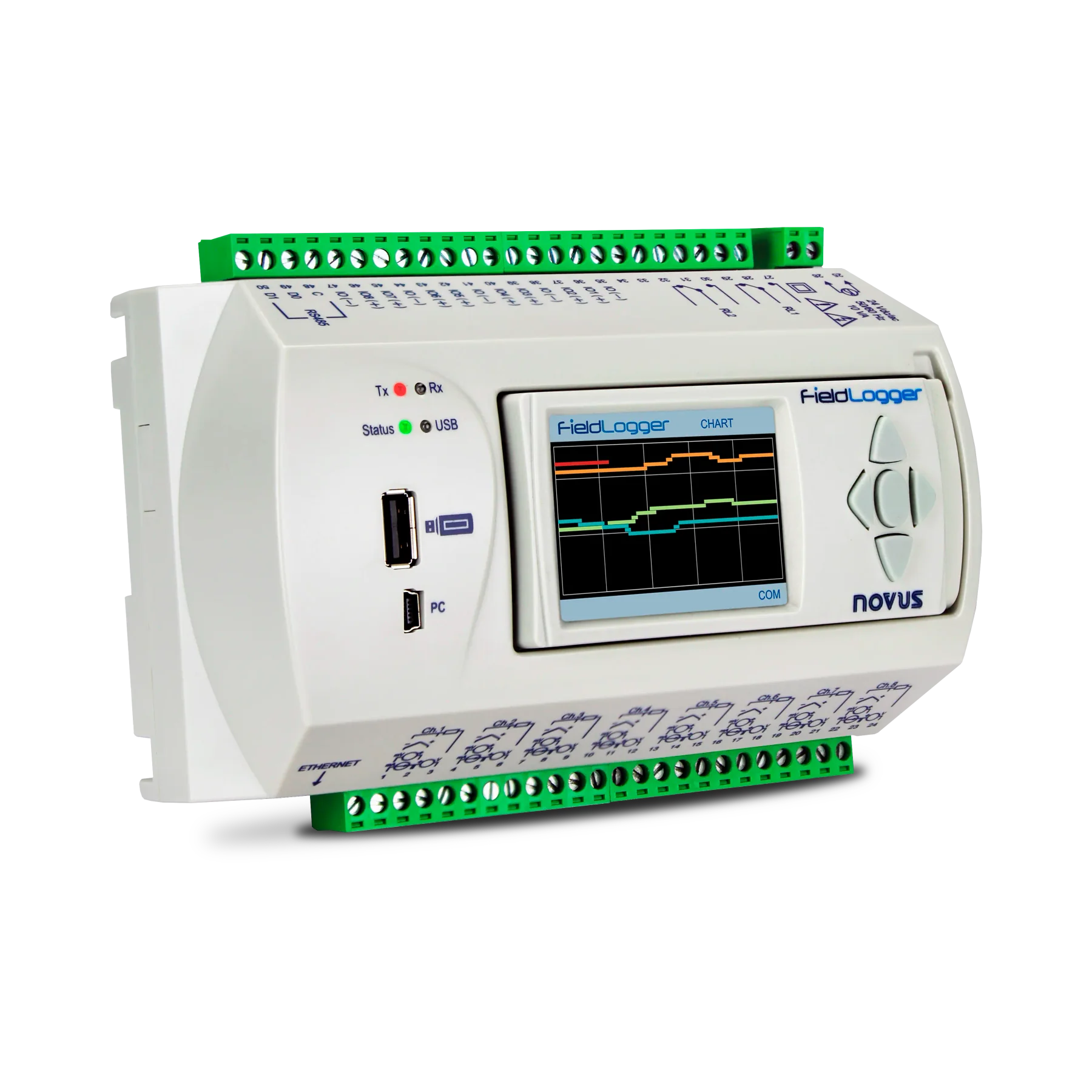

FieldLogger High-Performance Industrial Data Logger
Flagship industrial data recorder featuring 8 universal analog inputs with 24-bit resolution, 1000 logs/second speed, QVGA color display, 128 virtual channels, and Modbus TCP/RTU gateway.

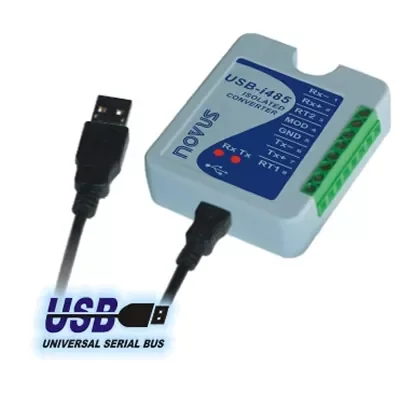

USB-i485 Isolated USB to RS485 / RS422 Converter
Compact and rugged USB-to-RS485/RS422 industrial communication converter with 1500 Vdc galvanic isolation and automatic flow direction control.

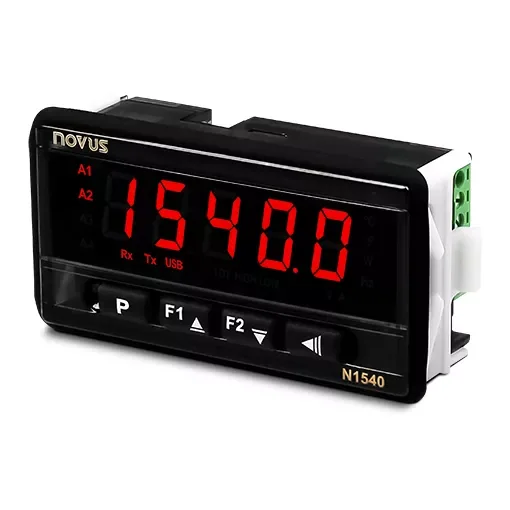

N1540 High-Performance Universal Digital Process Indicator
