Model: N1540
N1540 High-Performance Universal Digital Process Indicator
The N1540 is a modern, high-speed digital panel meter engineered for demanding monitoring applications across pharmaceutical, chemical, and bioprocess plants. With an ultra-shallow 34 mm depth, universal input acceptance, 50 samples/sec sampling, custom linearization, and front USB parameter copying, it is the premier choice for visual process verification.
Key Features
- High sampling rate: up to 50 samples per second with 15-bit A/D resolution
- Ultra-shallow panel depth of only 34 mm fits in crowded control consoles
- Universal input: Thermocouples J, K, T, E, N, R, S, B, Pt100, 0-50 mV, 0-5V, 0-10V, 4-20mA
- Exclusive USB port allows instant batch parameter replication across multiple units
- 2 SPST alarm relays (1.5 A @ 240 Vac) with 7 configurable alarm modes
- 24 Vdc auxiliary power supply output to power external 2-wire transmitters
Technical Specifications
Input & Measurement
Enclosure & Communication
Inquire About N1540
Need pricing, validation documentation (IQ/OQ), or custom application sizing? Contact our bioprocess engineering team.
Applications
- Cleanroom pressure cascade display panels (paired with NP785)
- Chromatography column pressure and UV absorption indication
- Purified water tank level and conductivity indication
- Sterilization autoclave temperature readout
Calibration & Validation
ISO/IEC 17025 factory calibration certificates and IQ/OQ documentation packages are available on request.
Include in enquiryDocumentation
Technical datasheets and user manuals are available from our engineering team upon request.
Request DocumentationRelated Products
View all Control & Indication

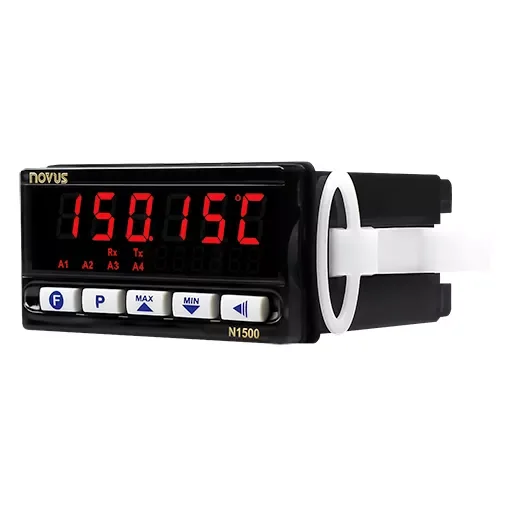

N1500 Advanced Process Indicator Series
