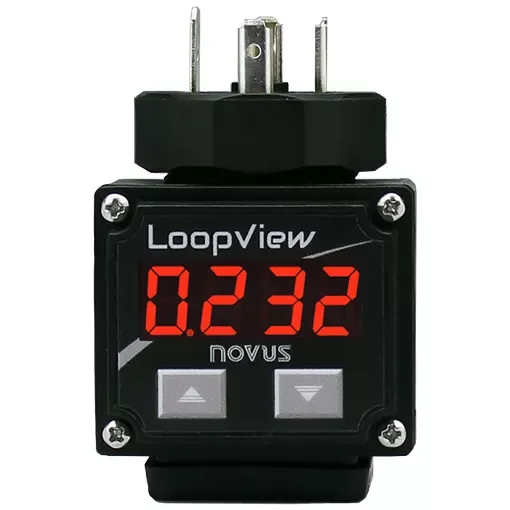

LoopView 4-20 mA Loop-Powered Process Indicator

Name: LoopView 4-20 mA Loop-Powered Process Indicator
Brand: NOVUS Automation

LoopView is an in-line process indicator designed to insert directly between an industrial transmitter (such as the NP640) and its DIN 43650 electrical plug. Powered entirely from the 4-20 mA current loop, it provides local digital indication of pressure, temperature, level, or flow without running new cables or mounting panel meters.

Power Source4-20 mA Loop-Powered (< 3V drop)

Display4-digit bright LED

MountingDIN 43650 sandwich assembly

ConfigurationFront panel push-buttons

CERoHS

Enquire Now View Specifications

Key Features

Powered directly from the 4-20 mA current loop (no auxiliary power required)
Standard DIN 43650 sandwich assembly inserts directly into existing sensor wiring
Bright 4-digit LED display with configurable decimal point and digital filtering
Front push buttons for intuitive on-site calibration and range setting
Password protected configuration prevents unauthorized parameter changes

Technical Specifications

Specifications

Input Signal

4-20 mA 2-wire

Voltage Drop

< 3.0 Vdc on current loop

Accuracy

± 0.2% of span ± 1 digit

Enclosure

Black polyamide housing with gasket protection

Request for Quotation & Engineering Data

Inquire About LoopView

Need pricing, validation documentation (IQ/OQ), or custom application sizing? Contact our bioprocess engineering team.

Applications

Adding local display to blind pressure transmitters in plant pump bays
Visual verification of clean utility header pressure
Filter differential pressure indication

Calibration & Validation

ISO/IEC 17025 factory calibration certificates and IQ/OQ documentation packages are available on request.

Include in enquiry

Documentation

Technical datasheets and user manuals are available from our engineering team upon request.
